Garage Door Insulation Value in Phoenix
Whether insulation is worth it depends on how you use the garage and how hot it gets, not on winter savings. With summer highs around 106°F, the payoff is less heat gain, mostly from June through September. The strongest case is a garage with a wall shared with living space, or one you use as a workshop or gym.

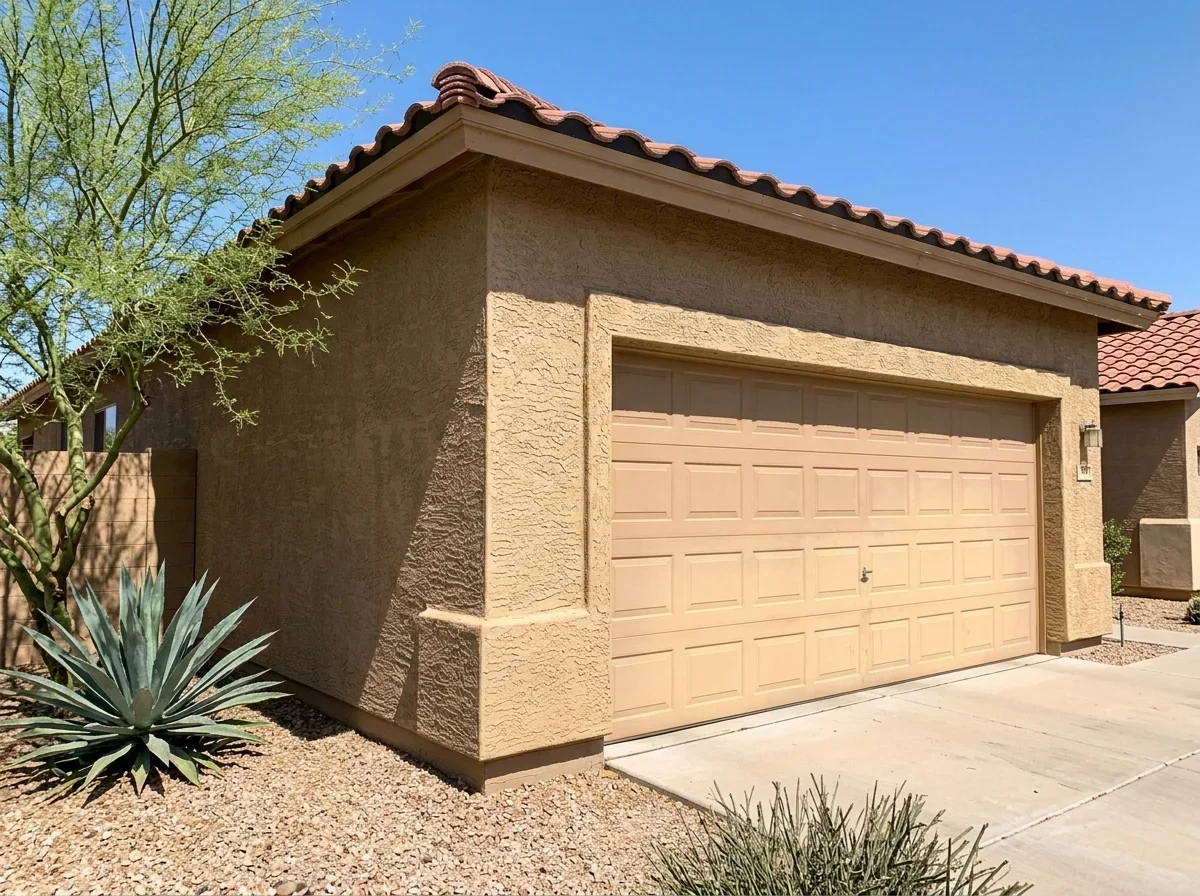

A steel door facing west or south heats up in direct sun and radiates that heat inward. Foam (polystyrene or polyurethane) slows conduction through the panel, while a reflective facing targets radiant gain. The U.S. Department of Energy (energy.gov) explains this split in its guidance on radiant barriers and insulation.
Insulation reduces heat gain, but it won't turn an unconditioned garage into a cool room. For how the foams compare, see polystyrene vs. polyurethane garage door insulation.
Adding Insulation to an Existing Garage Door
In most cases you can, using a retrofit kit, as long as the door is balanced, sound and fits the kit's panel style. Rust, dents or delaminating sections are signs to replace instead.
A door that's already out of balance will strain its springs and opener once panels go on, so have the balance checked first. If the springs are tired, garage door spring repair and replacement comes before any insulation.
Pro tip
Have the door's balance checked before buying a kit, since added panel weight can strain tired springs and the opener.
Kits are built for standard widths. Retail panels from Owens Corning, for example, are sold for doors up to about 9 feet wide, so a two-car 16-foot door needs a larger kit or more than one. Our how to keep a garage cool in Arizona guide covers the other pieces of the heat puzzle.
Garage Door Insulation Cost: Kit vs. New Insulated Door
Phoenix-area numbers are more useful than national or cold-climate figures, and they run in two tiers.
One Phoenix-metro installer lists insulated steel doors at $900 to $2,500 installed, including removal of the old door, hardware and a basic warranty.[2] Another says insulated doors typically add roughly $200 to $1,000 over a comparable non-insulated door.[1]
For a 16x7 double door, one metro listing puts double-layer polystyrene at $900 to $1,250 and triple-layer polyurethane at $1,200 to $1,900 or more. It also says a retrofit kit can lift an existing door from about R-0 to R-4 to R-6.[3]
| Option | What is included | Cost drivers | Best fit | Main limits |
|---|---|---|---|---|
| DIY retrofit kit | Pre-cut panels, retainers, adhesive or tape, your own labor | Door width, number of kits, panel material | Sound, balanced single door; handy owner | Added weight, standard sizes, finish can look unfinished |
| Professionally installed retrofit kit | Kit plus installer labor and a fit check | Door size, kit material, balance or spring adjustments | Good door where you want a cleaner install | Still depends on the old door's condition |

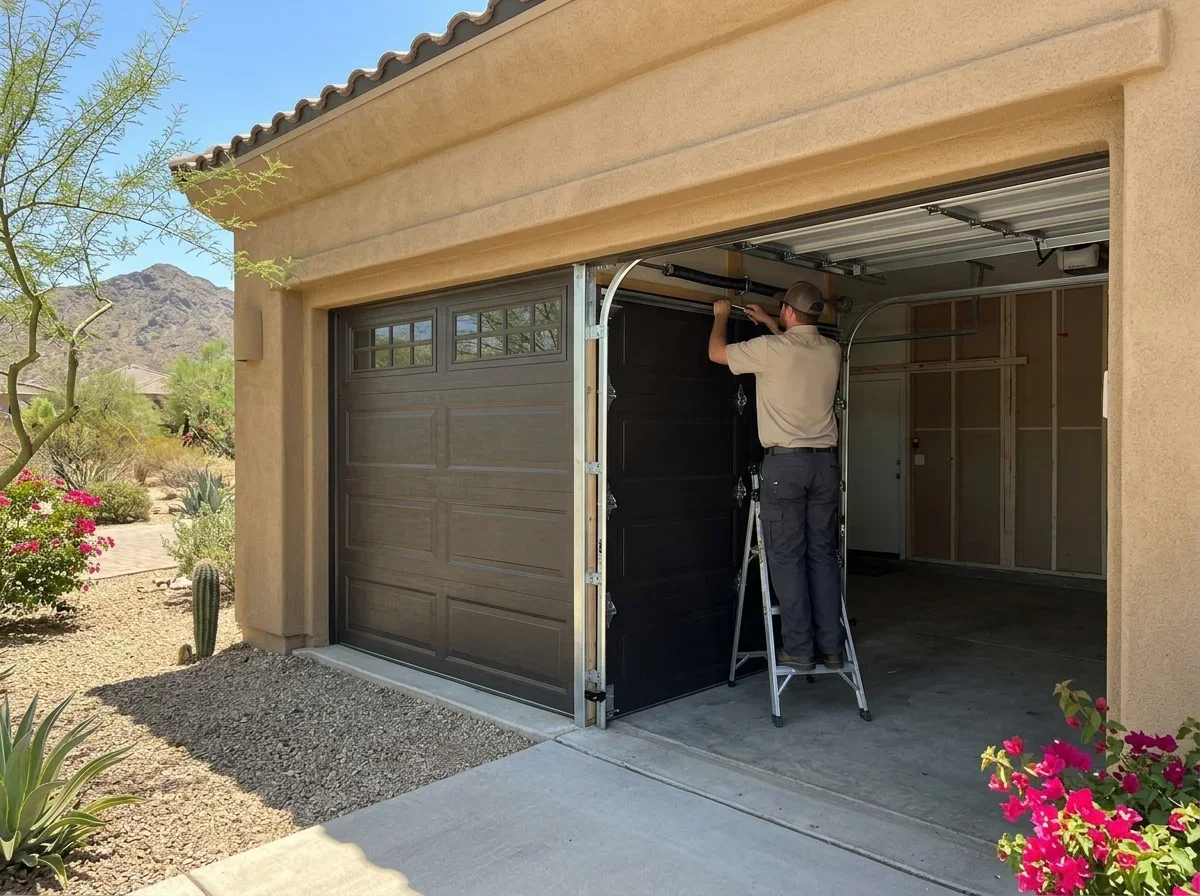

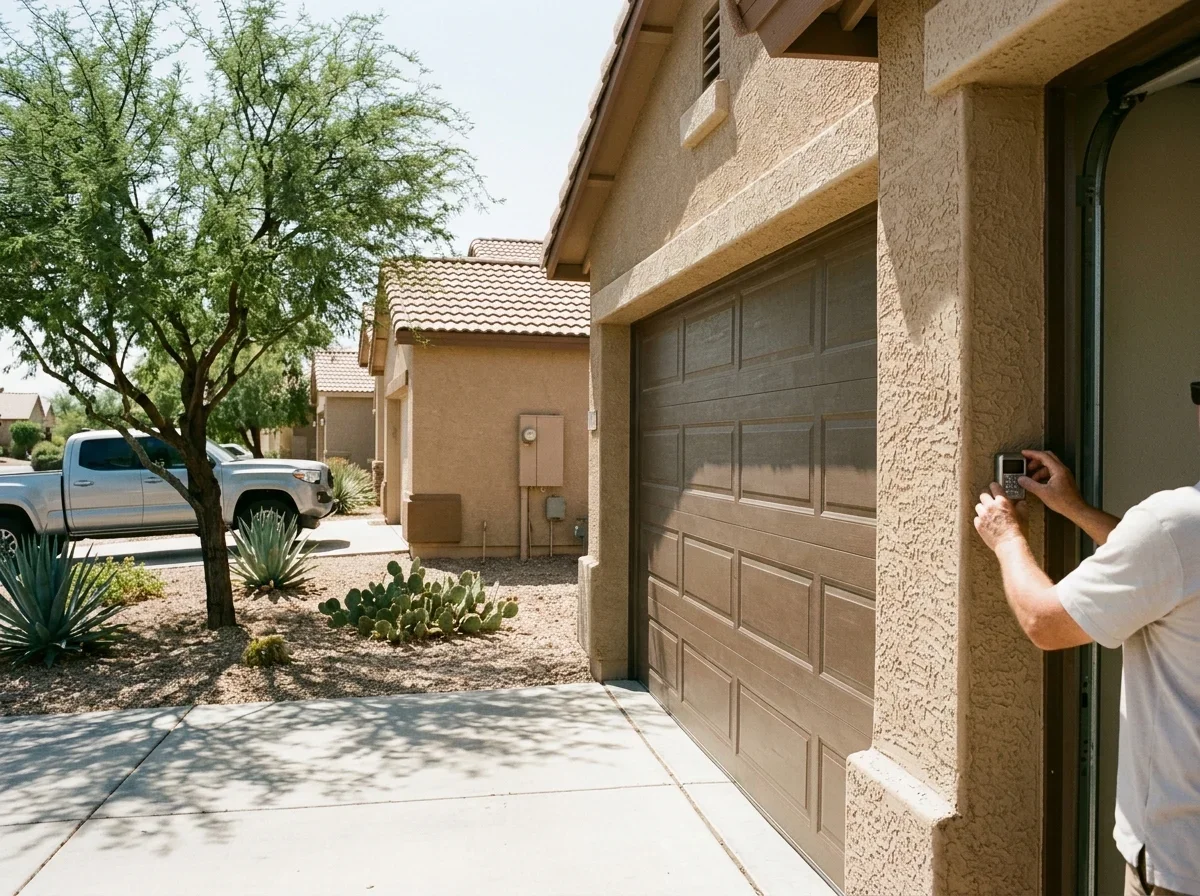

| New insulated door, installed | Door, labor, hardware, haul-away of the old door | Size, insulation level, windows, style, wind rating, opener work | Old, dented or out-of-balance doors; 16 ft doors | Highest upfront cost |
Factors That Drive Insulated Garage Door Prices
Size comes first. A double door costs more than a single.
Panel construction matters too. A single layer, a two-layer door with foam, and a sandwich with polyurethane bonded between steel skins rank from lowest to highest price.
Read R-value labels carefully. Door-only and whole-door (installed) measurements differ, so two doors with the same printed number may not perform equally.

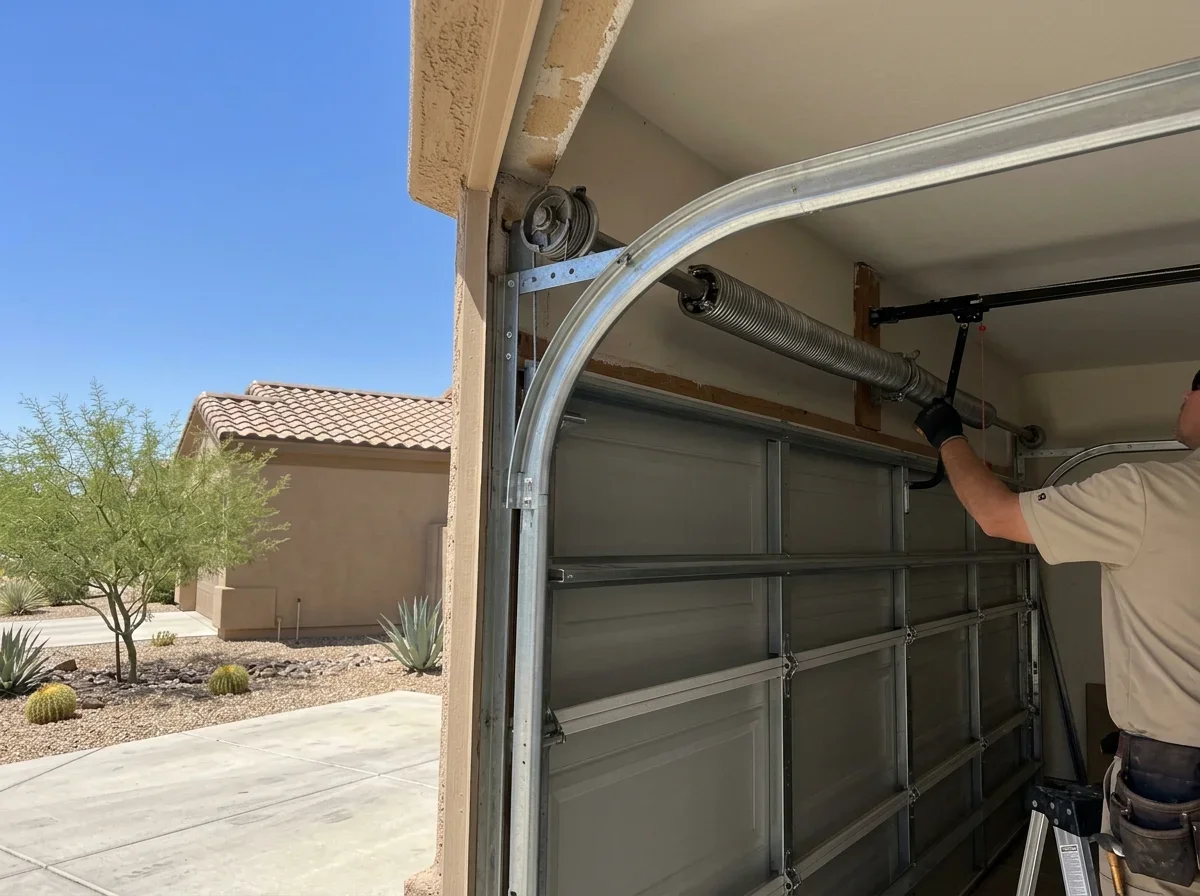

DASMA, the door manufacturers' association, also says the wind-load label should show design pressure in psf, not mph. See wind-rated garage door cost in Arizona.
A quote for a new door should itemize:
- The door itself
- Labor
- Haul-away of the old door
- Hardware
- Opener work
- Any spring or track repair found during the job
A replacement job at $1,000 or more in labor and materials requires an Arizona ROC-licensed contractor and a written contract under A.R.S. 32-1158. The contract must list the license number, scope, total price, deposit and payment schedule.
Look up the license at roc.az.gov/contractor-search and confirm the class covers the work. Our garage door contract requirements page walks through the details. When you're ready to price a replacement, start with garage door installation and replacement.
Quick answers
Can I add insulation to my existing garage door?
In most cases yes, with a retrofit kit, as long as the door is balanced, sound and fits the kit's panel style.
How much does a new insulated garage door cost?
One Phoenix-metro installer lists insulated steel doors at $900 to $2,500 installed.
Do I need a licensed contractor for a replacement?
Yes, a job at $1,000 or more in labor and materials requires an Arizona ROC-licensed contractor and a written contract.
